Specification Of 15-30m Arcum Tent
Weather can be the unexcepted and unavoidable situation during any outdoor events. To make your event can be held smoothly, a reliable aluminum tent will be the perfect solution. All of LPoutdoors' tent structures are made with stainless hard pressed aluminum alloy and waterproof PVC fabric.If you want to know more about the specification, please read this article.
About The Model

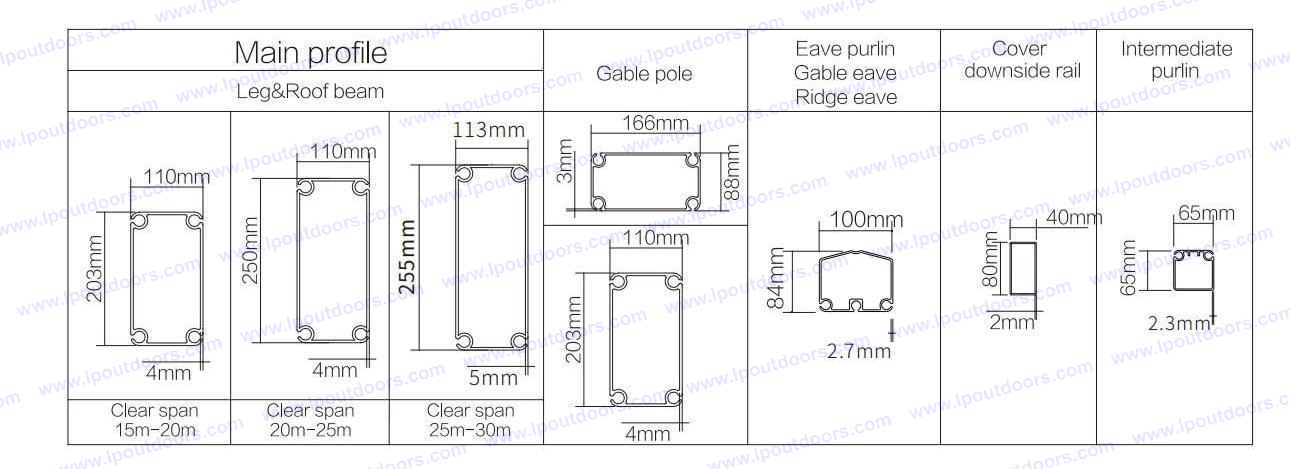

About The Main Profile
About Details Of 20-30m Arcum Tent
| Item | Spec | ||
| Clear Span (With) | 20m | 25m | 30m |
| Side Height | 4m | 4m | 4m |
| Ridge Height | 7.1m | 7.9m | 8.8m |
| Longest Component | 7.2m | 6.8m | 8.2m |
| Roof Pitch | 18° | ||
| Bay Distance | 5m | ||
| Minimum Length | 30m | ||
| Maximum Length | No Limited | ||
| Max. Allowed Wind Speed | 80KM/H | ||
| Eave Connection | Galvanized steel insert | ||
| Frame Material | Hard Pressed Extruded Aluminum 6061/T6 | ||
| Cover Material | Double Coated Polyester Textile,650g-850g/m2 Flame Retardant to Din4102B1,M2 | ||
| Optional Accessories | PVC Window,Glass door,Anchoring,Rain Gutter, ABS wall, Sandwich Wall System, Glass Walling System, Lining And Curtain, Flooring System, Weight Plate | ||
About The Optional Accessories
About the Practical Using
What's more
If there is not the specification you want to see, please check here and see more specification.
