30m curve tent
LPOUTDOORS
6306220090
30m

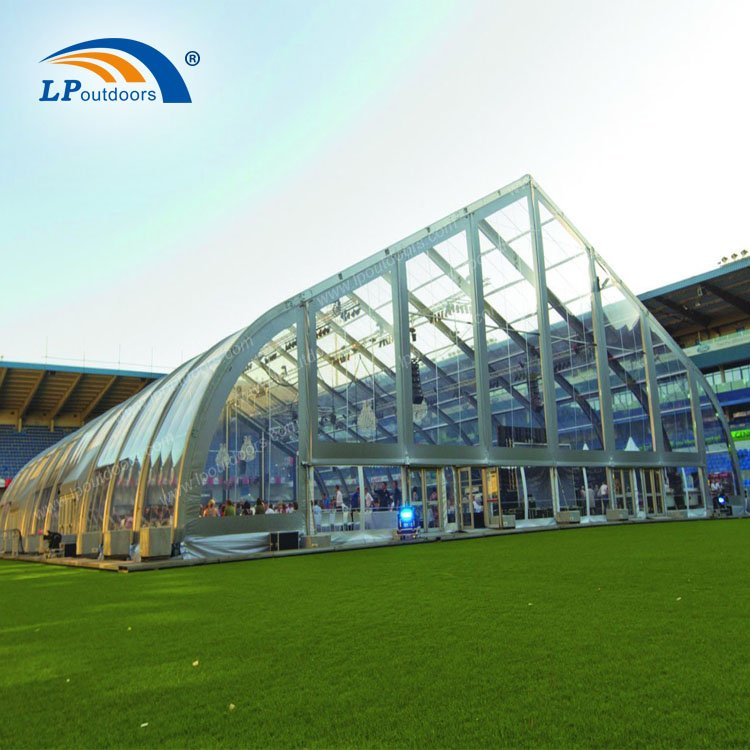

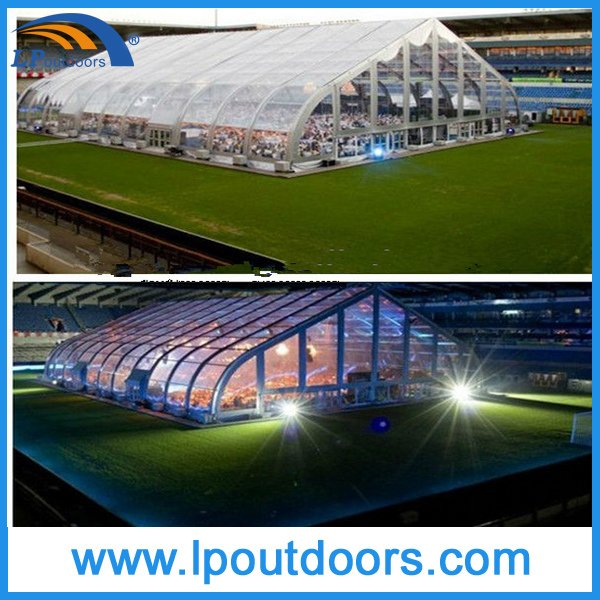

Aluminum Frame Marquee Large Tennis Baseball Mega Tent for Sports
Guarantee: Frame 5years, fabric 3 years.
Wind loading: 100km/h.
Snow loading: 0.5kn/sqm
Certificate: Wind loading test, Vinyl Flame retardant M2, lining flame retardant BS5867
Galvanized Salt spray 144hours test, UV aging certificate, Aluminum 6061 test
Fabric RoHS certificate. Transparency PVC -20º C to 70º C resistant
Detailed specification:
(1)Size:The size can be customized, width: 6m~ 50m,
Maximum length: no limited
(2)Frame: Hard pressed extruded aluminum 6061/T6 anodized, hot DIP galvanized steel joints, and passed the 144hours of salt spraying test.
(3)Cover material: 850G/M2 vinyl blockout, white with blue stripe for top cover, 650G/M2 for sidewalls vinyl blockout, waterproof, UV protection, rotproof Flame retardant M2.
(4)Options: Transparency PVC windows, grass anchors, wood floor, lining and so on.
(5)What advantage:
| Item | Our manufactory | Some manufactories |
| Side height | 4m | lower 3.7m or3.5m |
| Aluminum profile | Bigger 250x110x4mm | Smaller 230x110x3mm profile |
| Fabric | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
| Steel joints | Good welding, Spray salt resistant 144hour | Bad welding, Spray salt resistant about 80 hour |
| Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
| Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be -20º C resistant, breaken |
| Sidewall accessories | Nylon rope+Nickel Eyelet | Zippper, easy breaken. or cotton rope, easy rot |
| Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
| Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
| Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
| Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
| Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
| Wind loading | Wind loading 80km/h test report | No Wind loading test report |
