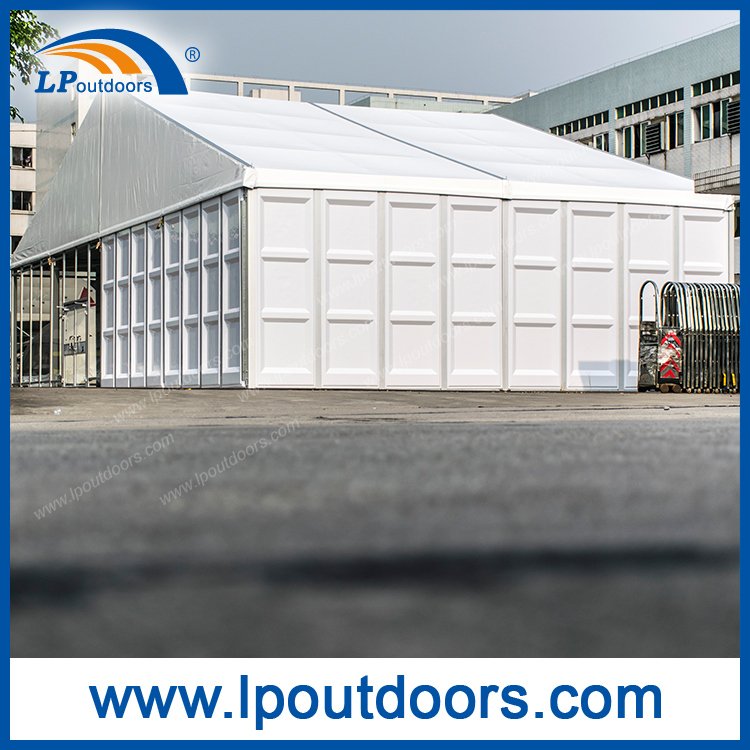

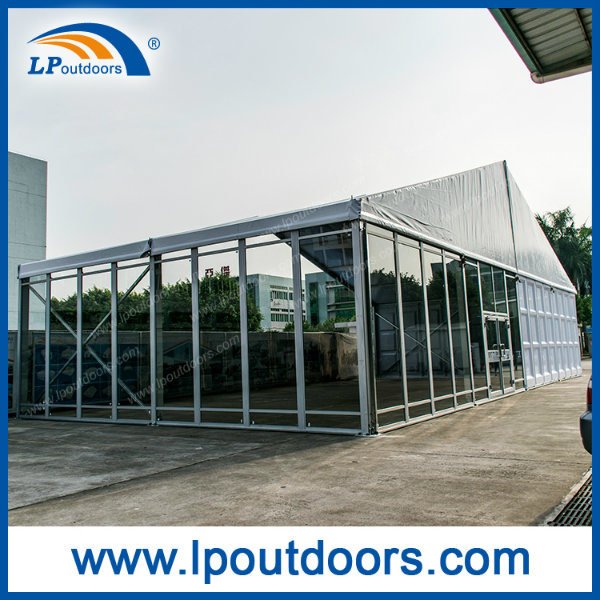

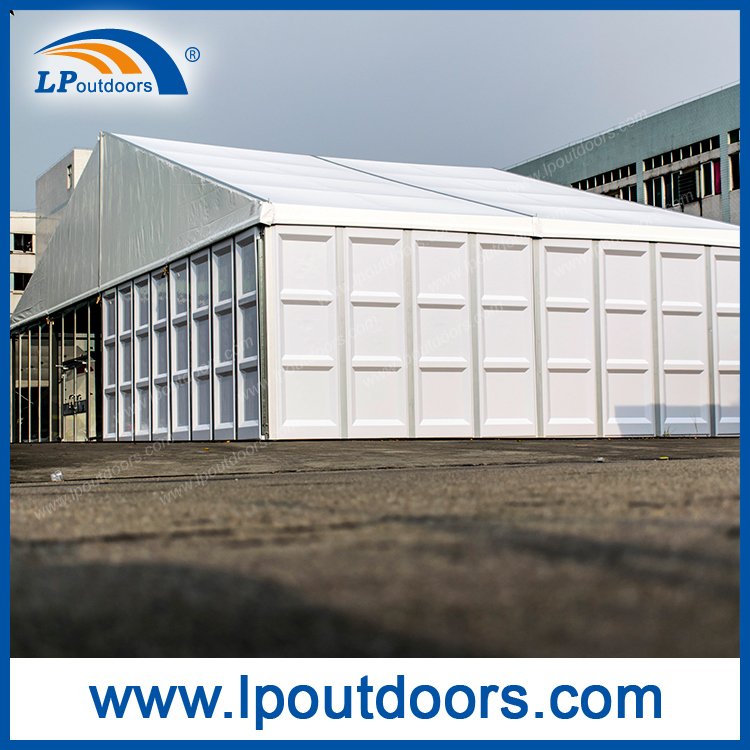

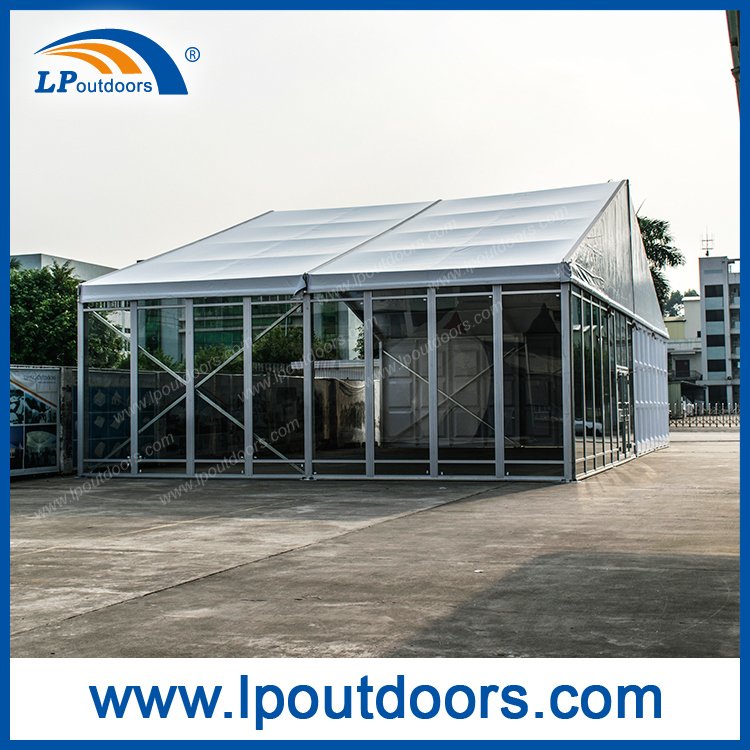

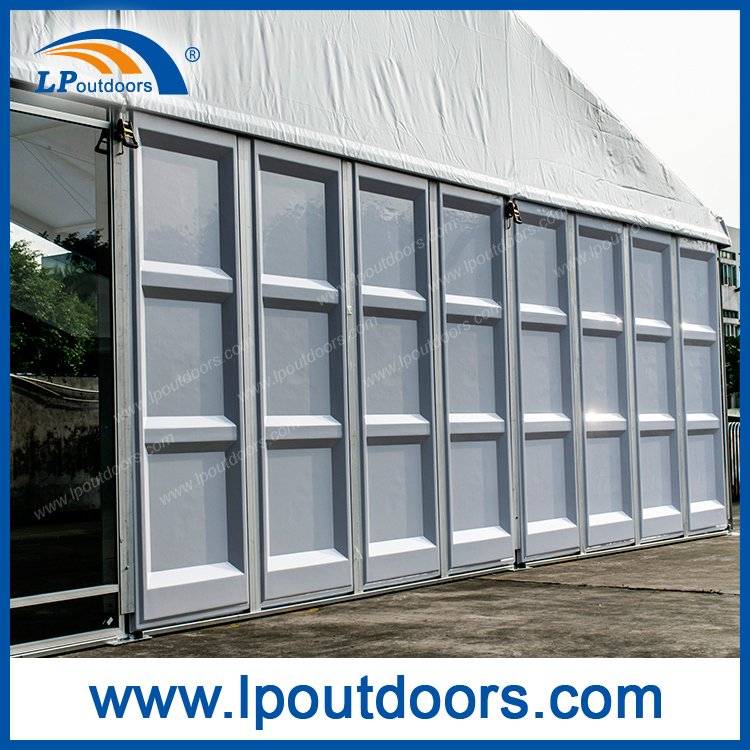

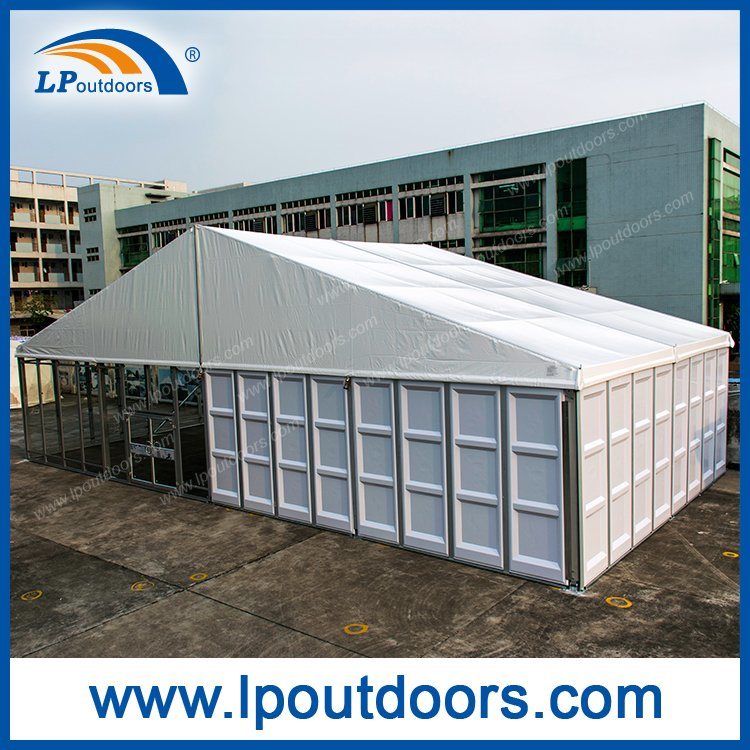

20X50m Outdoor ABS Glass Wall Solid Wedding Tent

  • LPOUTDOORS
  • 6306220090
  • 20m

20X50m Outdoor ABS  Glass Wall Solid Wedding Tent


20X30m Outdoor ABS Wall Solid Wedding Tent for Sports Event



20X30m Outdoor ABS Wall Solid Wedding Tent for Sports Event



20X30m Outdoor ABS Wall Solid Wedding Tent for Sports Event

Tent Guarantee: Frame 5years, fabric 3 years.
Wind loading: 100km/h.
Snow loading: 0.5kn/sqm

Tent Certificate: Wind loading test, Vinyl Flame retardant M2, lining flame retardant BS5867
Galvanized Salt spray 144hours test, UV aging certificate, Aluminum 6061 test
Fabric RoHS certificate. Transparency PVC -20º C to 70º C resistant

Details description:

(1)Size: The size can be customized, width: 6m~ 50m,
Maximum length: No limited
(2)Frame: Hard pressed extruded aluminum 6061/T6 anodized, hot DIP galvanized steel joints, and passed the 144hours of salt spraying test.

(3)Cover material: 850G/M2 vinyl blockout, white with blue stripe for top cover, 650G/M2 for sidewalls vinyl blockout, waterproof, UV protection, rotproof Flame retardant M2.

(4)Options: Transparency PVC windows, grass anchors, wood floor, lining and so on.

(5)What advantage:

Item Our manufactory Some manufactories
Side height 4m Lower 3.5m or 3.8m
Aluminum profile Bigger 203X110X4mm Smaller 166X87X3mm profile
Fabric 850g/sqm, special treated 830g/sqm or 750g/sqm, no special treated
Steel joints Good welding, Spray salt resistant 144hour Bad welding, Spray salt resistant about 80 hour
Assembly accuracy Bolt and holes can fit exactly and fixed Bolt is difficult to get through hole and fixed.
Transparency PVC UV Aging test, -20º C resistant No UV Aging test, can' t be -20º C resistant, breaken
Sidewall accessories Nylon rope+Nickel Eyelet Zippper, easy breaken. Or cotton rope, easy rot
Rachet Bigger rachet+nylon 50mm ribbon Small rachet+polyester ribbon, easy breaken
Cover lappetstructure Aluminum rails+screw bolt Elastic rope, easy breaken and water can' t flow.
Roof wire 201# steel wire, stainlesss Generally steel wire, easy stain
Support beam " X" brace beam, galvanized steel Port beam, thin aluminum
Gable triangle wall The middle is aluminum slots The middle is velcro or rope.
Wind loading Wind loading 80km/h test report No Wind loading test report


Optional:
20X30m Outdoor ABS Wall Solid Wedding Tent for Sports Event




Who are we?

2010 COMMONWEALTH GAME SUPPLIER
2010 WORLD CUP SUPPLIER
2012 OLYMPIC GAMER SUPPLIER

Liping Outdoors Co., Ltd is a experienced manufacturer and exporter of outdoor tents and event products.
We have more than 12 years' work experience with giants such as GL Events in France, EZ-UP in USA
Gala-tent in UK. And have been in IS09001 quality system for 10 years.
