Aluminum PVC Temporary Storage Tent As Warehouse
Guarantee: Frame 5years, fabric 3 years.
Wind loading: 80km/h.
Storage tent Size details
|Item||Size||Side high||ridge high||Bay distance|
|PT10||10m width,the length is unlimited||3m||5.0||5m|
|PT11||11m width,the length is unlimited||3m||5.2||5m|
|PT12||12m width,the length is unlimited||3m||5.3||5m|
|PT13||13m width,the length is unlimited||3m||5.4||5m|
|PT14||14m width,the length is unlimited||3m||5.5||5m|
|PT15||15m width,the length is unlimited||3m||5.5||5m|
|PT16||16m width,the length is unlimited||3m||5.6||5m|
|PT18||18m width,the length is unlimited||3m||5.7||5m|

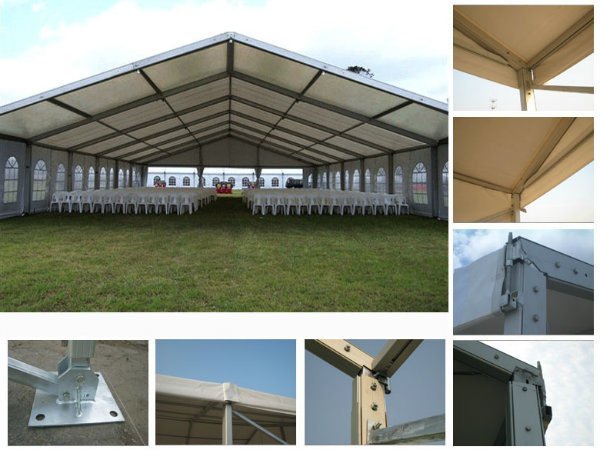

|Structure of marquee:|
|Aluminum profile ||high pressed extrued aluminum alloy 6061-T6,122X68X3mm for 10m,11m,12mwidth|
| ||166x88x3mm for 13m, 14m. 15m, 17m, 18m width. All are anodized|
|Steel parts||hot-dipped galvanized , Passed 144 hour of salt spraying test |
|Raw material of marquee|
|Top roof fabric ||850g/sqm(24 Ounce) laminate Vinyl, waterproof , fire retardant M2|
| ||UV protection, and Rotproof. Blackout|
|Side panels||(1) 650g/sqm(19 Ounce) laminate Vinyl, waterproof , fire retardant M2|
| || UV protection, and Rotproof. Translucence.|
| ||(2) 5cm thickness of sandwitch solid wall, ABS Solidwall,Glass wall|
| || flame retardant,Heat resistant and Rotproof.|

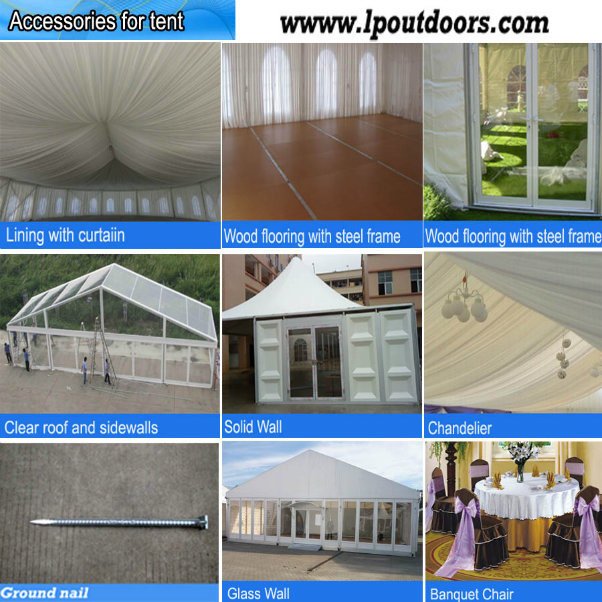

Options: Transparency PVC windows, grass anchors, wood floor, lining and so on.
1.How big a tent do i need ?
Tent size depends on the number of people/area you want to cover.Normally,we calculate1-1.5sqm per person.
Different products ,different MOQ,pls call or email to learn.
3.Can you make design for customer?
Yes,we have our own designer,we can make any customer design,different size and different colors.
4.Can i put my logo onto the products
Yes,you can choose the silk imprint or digital imprint.
5.Any accessories included?
Our quotation includes repair kits,ground peg,PVC storage bag.
For 1 pc sample,the production time is about 10 days after payment receipt.
For 20' container of order.the production time is about 30 days .
7.What payment term:
T/T 30% deposit,70% before shipment arranged or after goods inspected.
L/C irrevocable and at sight.
Western union or Paypal for small order.
We have our own forwarder,you could choose by sea,air or express.Any shipping way you like is ok for us.
please mail me the photos on the damaged product,also let me know how many sets.Then we'll compensate it accordingly.as well as we'll improve the production system to avoid the quality problems again.
Want more details and good price for our storage tent, Please inquriy now
|Item||Our manufactory ||Some manufactories|
|Side height||3m||lower 2.7m or 2.5m|
|Aluminum profile||Bigger 166x88x3mm||Smaller 122x68x2.5mm profile|
|Fabric||850g/sqm, special treated||750g/sqm or 650g/sqm, no special treated|
|Steel joints||Good welding, Spray salt resistant 144hour||Bad welding, Spray salt resistant about 80 hour|
|Assembly accuracy||Bolt and holes can fit exactly and fixed||Bolt is difficult to get through hole and fixed.|
|TransparencyPVC ||UV Aging test, -20º C resistant||No UV Aging test, can' t be 20º Cresistant, breaken|
|Sidewallaccessories||Nylon rope+Nickel Eyelet||Zippper, easy breaken. or cotton rope, easy rot|
|Rachet||Bigger rachet+nylon 50mm ribbon||Small rachet+polyester ribbon, easy breaken|
|Cover lappetstructure||Aluminum rails+screw bolt||Elastic rope, easy breaken and water can' t flow.|
|Roof wire||201# steel wire, stainlesss||Generally steel wire, easy stain|
|Support beam|| " X" brace beam, galvanized steel||port beam, thin aluminum|
|Gable triangle wall||The middle is aluminum slots||The middle is velcro or rope.|
|Wind loading||Wind loading 80km/h test report||No Wind loading test report|
