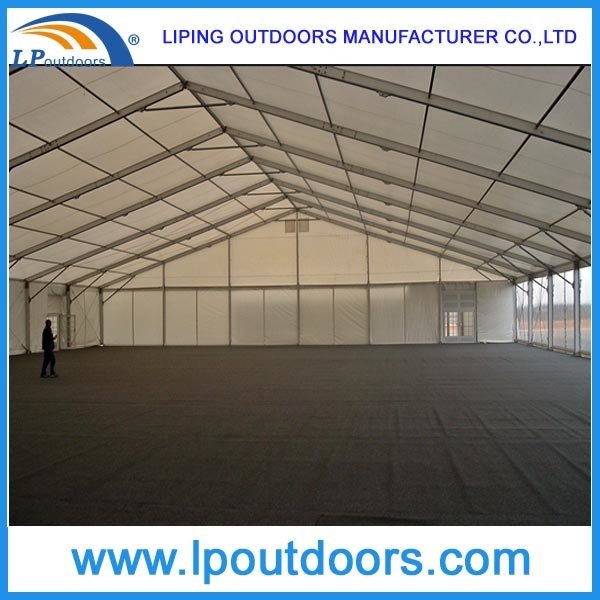

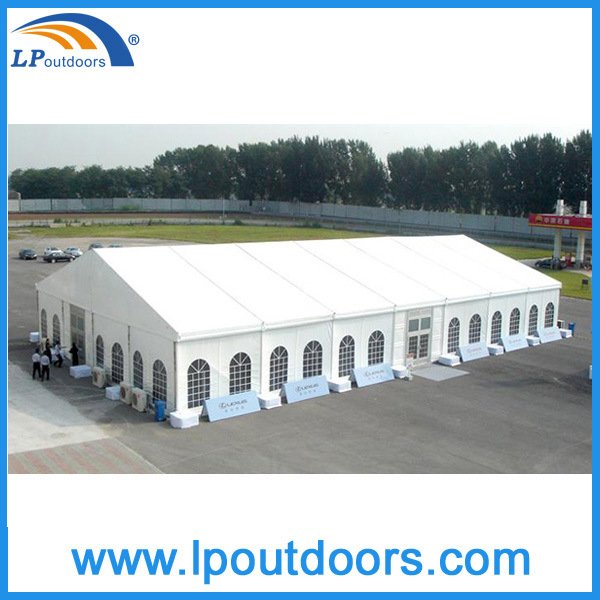

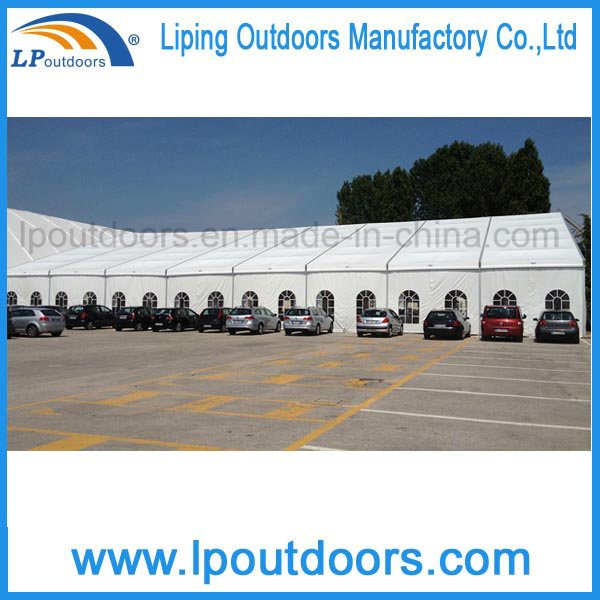

Festival tent detailed specification:
Guarantee: Frame 5years, fabric 3 years.
Wind loading: 80km/h.
Snow loading: 0.3 kn/sqm

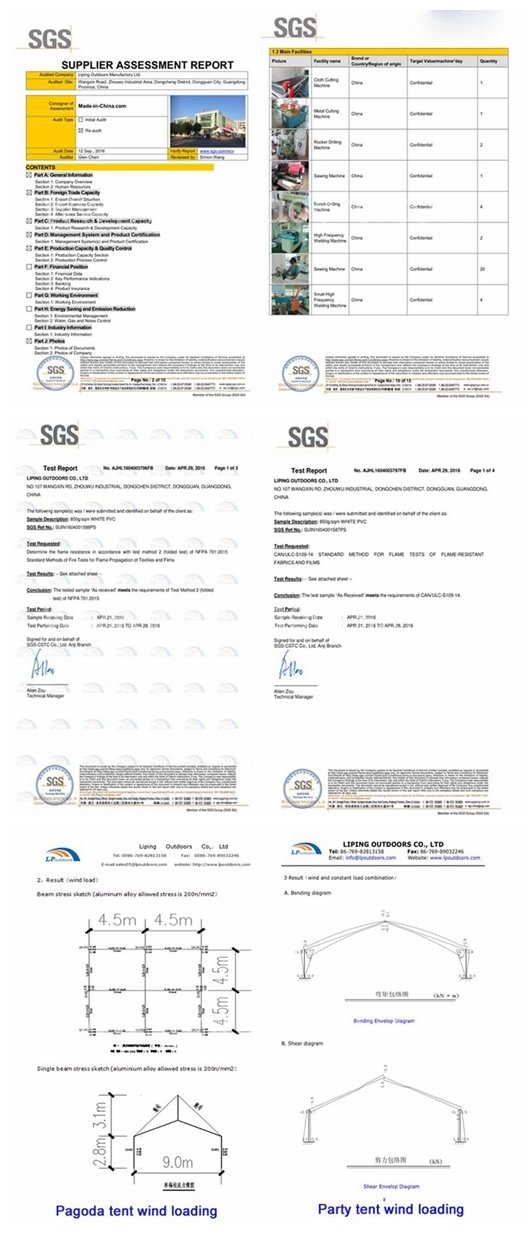

Certificate: 80km wind loading test, Vinyl Flame retardant M2, lining flame retardant BS5867
Galvanized Salt spray 144hours test, UV aging certificate, Aluminum 6061 test
Fabric RoHS certificate. Transparency PVC -20º C to 70º C resistant
Size: 30m width, the length is 40m, 4m side height, 8.87m top height., 5m per bay.
Frame: 6061 T6, 250x110x5mm aluminum profile. Q235 steel joints, hot DIP galvanized.
Fabric: 850g/sqm Vinyl for top cover, 650g/sqm Vinyl for sidewalls. Waterproof UV protection, flame retardant M2, Rotproof
Options: Transparency PVC windows, grass anchors, wood floor, lining and so on.
If you need above clear certificates copy, Pls feel free to contact with me today.
|Item||Our manufactory||Some manufactories|
|Side height||4m||lower 3.7mor3.5m|
|Aluminum profile||Bigger 255x113x5mm||Smaller 250x110x4mm profile|
|Fabric||850g/sqm, special treated||750g/sqm or 650g/sqm, no special treated|
|Steel joints||Good welding, Spray salt resistant 144hour||Bad welding, Spray salt resistant about 80 hour|
|Assembly accuracy||Bolt and holes can fit exactly and fixed||Bolt is difficult to get through hole and fixed.|
|TransparencyPVC||UV Aging test, -20º C resistant||No UV Aging test, can' t be -20º C resistant, breaken|
|Sidewallaccessories||Nylon rope+Nickel Eyelet||Zippper, easy breaken. or cotton rope, easy rot|
|Rachet||Bigger rachet+nylon 50mm ribbon||Small rachet+polyester ribbon, easy breaken|
|Cover lappetstructure||Aluminum rails+screw bolt||Elastic rope, easy breaken and water can' t flow.|
|Roof wire||201# steel wire, stainlesss||Generally steel wire, easy stain|
|Support beam||" X" brace beam, galvanized steel||port beam, thin aluminum|
|Gable triangle wall||The middle is aluminum slots||The middle is velcro or rope.|
|Wind loading||Wind loading 80km/h test report||No Wind loading test report|
