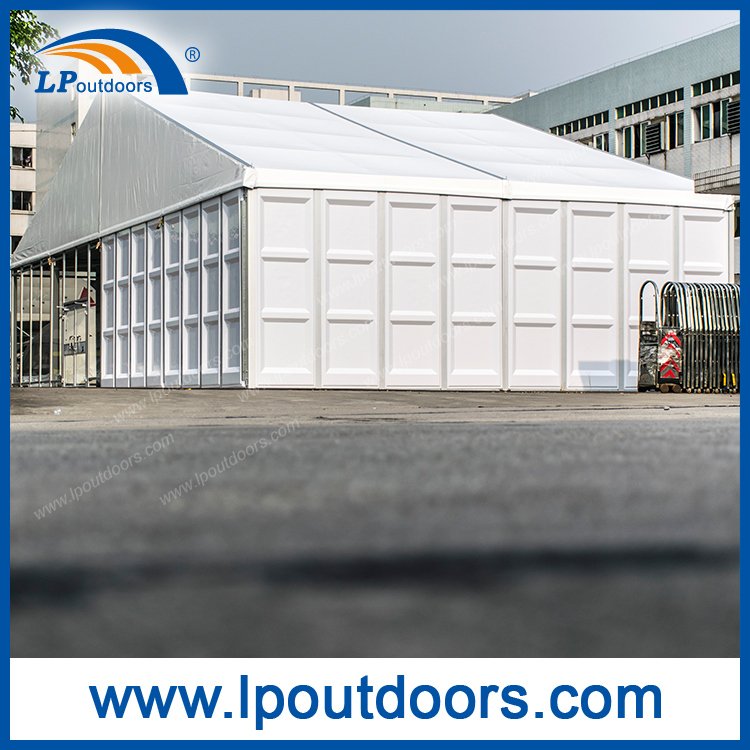

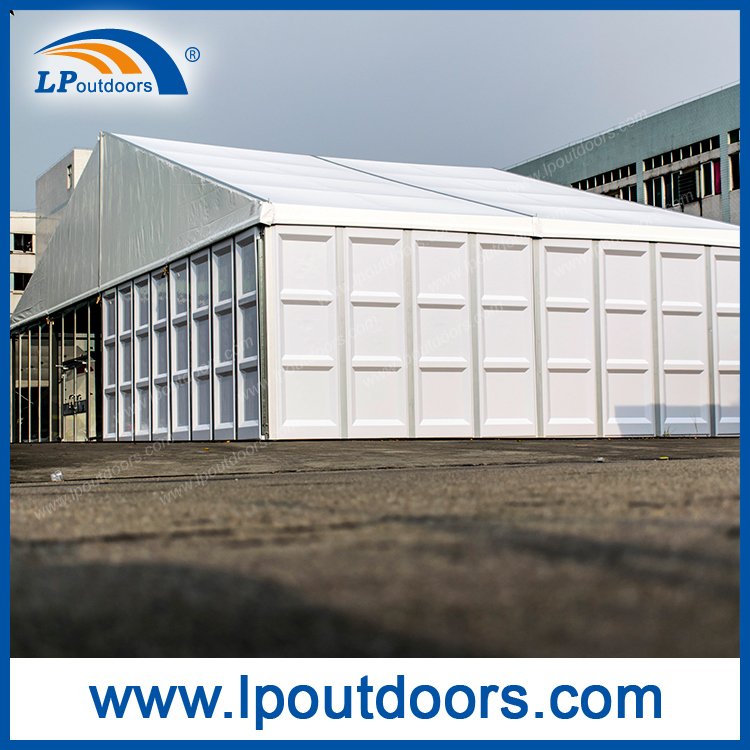

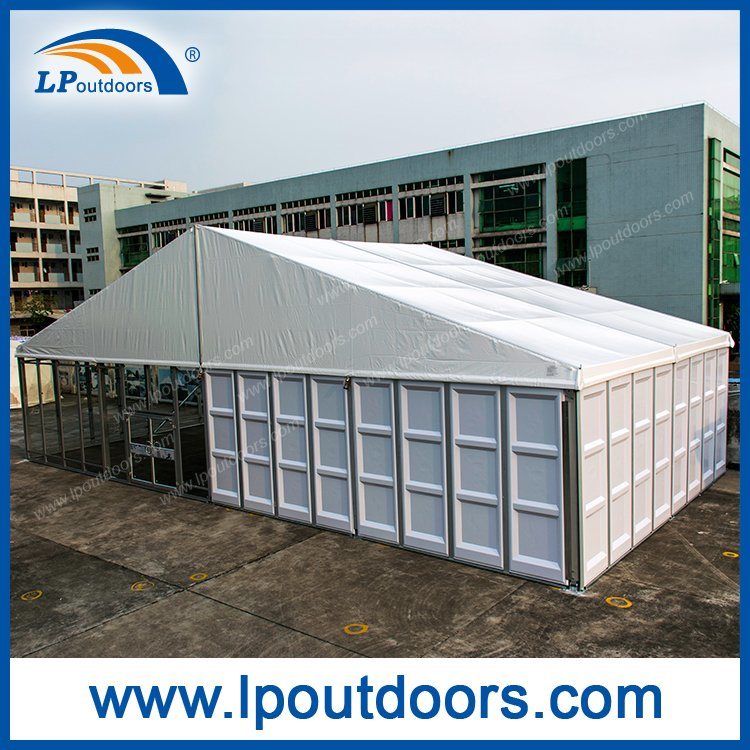

20X50m Outdoor ABS Glass Wall Solid Wedding Tent
Tent Guarantee: Frame 5years, fabric 3 years.
Wind loading: 100km/h.
Snow loading: 0.5kn/sqm
Tent Certificate: Wind loading test, Vinyl Flame retardant M2, lining flame retardant BS5867
Galvanized Salt spray 144hours test, UV aging certificate, Aluminum 6061 test
Fabric RoHS certificate. Transparency PVC -20º C to 70º C resistant
(1)Size: The size can be customized, width: 6m~ 50m,
Maximum length: No limited
(2)Frame: Hard pressed extruded aluminum 6061/T6 anodized, hot DIP galvanized steel joints, and passed the 144hours of salt spraying test.
(3)Cover material: 850G/M2 vinyl blockout, white with blue stripe for top cover, 650G/M2 for sidewalls vinyl blockout, waterproof, UV protection, rotproof Flame retardant M2.
(4)Options: Transparency PVC windows, grass anchors, wood floor, lining and so on.
|Item||Our manufactory||Some manufactories|
|Side height||4m||Lower 3.5m or 3.8m|
|Aluminum profile||Bigger 203X110X4mm||Smaller 166X87X3mm profile|
|Fabric||850g/sqm, special treated||830g/sqm or 750g/sqm, no special treated|
|Steel joints||Good welding, Spray salt resistant 144hour||Bad welding, Spray salt resistant about 80 hour|
|Assembly accuracy||Bolt and holes can fit exactly and fixed||Bolt is difficult to get through hole and fixed.|
|Transparency PVC||UV Aging test, -20º C resistant||No UV Aging test, can' t be -20º C resistant, breaken|
|Sidewall accessories||Nylon rope+Nickel Eyelet||Zippper, easy breaken. Or cotton rope, easy rot|
|Rachet||Bigger rachet+nylon 50mm ribbon||Small rachet+polyester ribbon, easy breaken|
|Cover lappetstructure||Aluminum rails+screw bolt||Elastic rope, easy breaken and water can' t flow.|
|Roof wire||201# steel wire, stainlesss||Generally steel wire, easy stain|
|Support beam||" X" brace beam, galvanized steel||Port beam, thin aluminum|
|Gable triangle wall||The middle is aluminum slots||The middle is velcro or rope.|
|Wind loading||Wind loading 80km/h test report||No Wind loading test report|
Who are we?
2010 COMMONWEALTH GAME SUPPLIER
2010 WORLD CUP SUPPLIER
2012 OLYMPIC GAMER SUPPLIER
Liping Outdoors Co., Ltd is a experienced manufacturer and exporter of outdoor tents and event products.
We have more than 12 years' work experience with giants such as GL Events in France, EZ-UP in USA
Gala-tent in UK. And have been in IS09001 quality system for 10 years.
